Wavy geometry
White curvilinear elements and special aluminum systems form the characteristic silhouette of the tower and complex connections.
ALPHA TOWER / C2 · TEL AVIV
Alpha Tower, Tel Aviv BIM-coordination of the multifunctional tower
Alpha Tower combines residential floors, a hotel, commercial spaces and four levels of underground parking. The wavy facade and different scenarios of operation form a complex architectural and engineering object.
The portfolio of Ziggurat Alpha Tower is represented by models of engineering systems, a combined plan and sections that reveal the spatial component of coordination.
Superficiality
32 floors
Residential part
120 apartments
Underground infrastructure
4 levels of parking
PROJECT IN DETAILS
Alpha Tower: models, plan and sections
General view of the facility, model images of engineering systems, combined coordination plan and sections from the Ziggurat portfolio.
BRIEFLY ABOUT THE PROJECT
Housing, hotel and commerce - in one height volume
Alpha Tower / C2 is located in the Hassan Arafa / Yitzhak Sadeh complex in Tel Aviv. According to the developer, the address is 20 Yitzhak Sadeh Street. According to Ashtrom, the total floor area of the complex is 43,000 m²; this is the building area, not a confirmed area covered by the coordination contract.
32
floors of the tower
120
apartments in the residential part
4
underground parking levels
- Location
- Yitzhak Sade, 20 · Tel Aviv, Israel
- Developer
- Acro Real Estate
- Architecture
- MYS Architects — Yaski, Mohr, Sivan
- General contractor
- Ashtrom Engineering and Construction
CHALLENGES OF COORDINATION
Various functions - common engineering space
The tower combines private housing, hotel rooms, restaurants, public spaces and underground infrastructure. These functions have different modes of operation and engineering requirements. Spatial coordination is important within each zone and at transitions between them.
- Coordination of residential, hotel and commercial zones with different modes of operation.
- Vertical routes, floor wiring and transitions between above-ground and underground levels.
- Limitations of the wavy facade, structures and technical spaces.
ENGINEERING CONTEXT
Technical features Alpha Tower
Facade geometry, hotel and residential infrastructure and four underground levels form the complexity of the object. The features listed are descriptive of the building and are not an assertion that Ziggurat designed every element listed.
43,000 m²
area of the complex according to Ashtrom
18
floors of the residential part
4
floors of the underground parking lot
Separate operating scenarios
Hotel rooms, restaurants, swimming pools, SPAs and public spaces have different needs for ventilation, air conditioning and engineering.
Four-level parking
The underground part concentrates engineering routes and technical zones. Their mutual location is shown in the combined plan and sections.
ZIGGURAT ENGINEERING MATERIALS
Model, plan and section - interrelated views
Alpha Tower is presented in the Ziggurat portfolio under the designation C2. Published materials include models of engineering systems, combined coordination plan and sections. They are the basis of the technical part of this case.

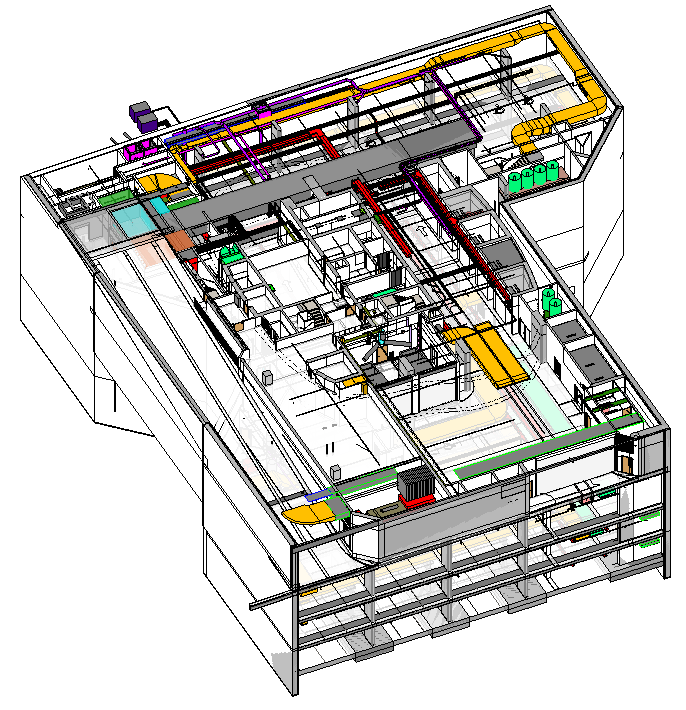

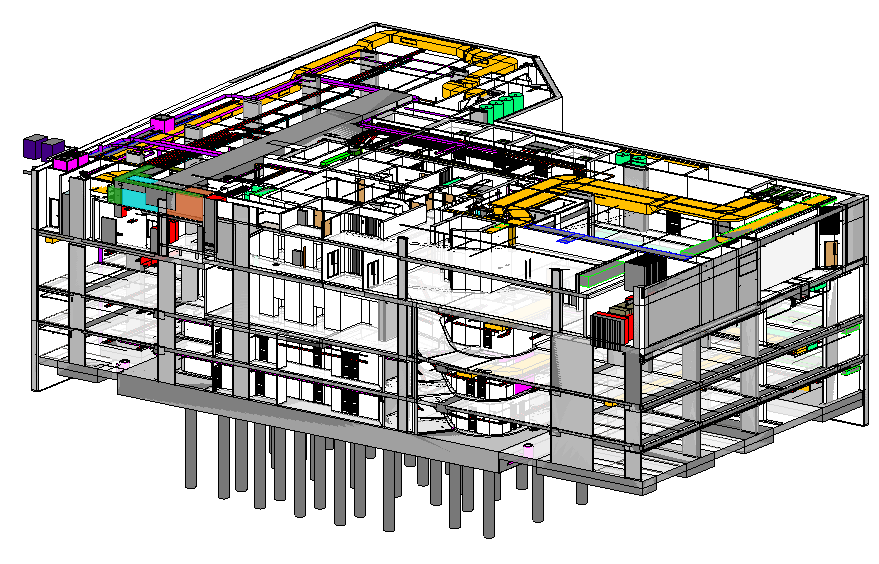

Models of engineering systems
Spatial images show the relative location of networks and structural elements.

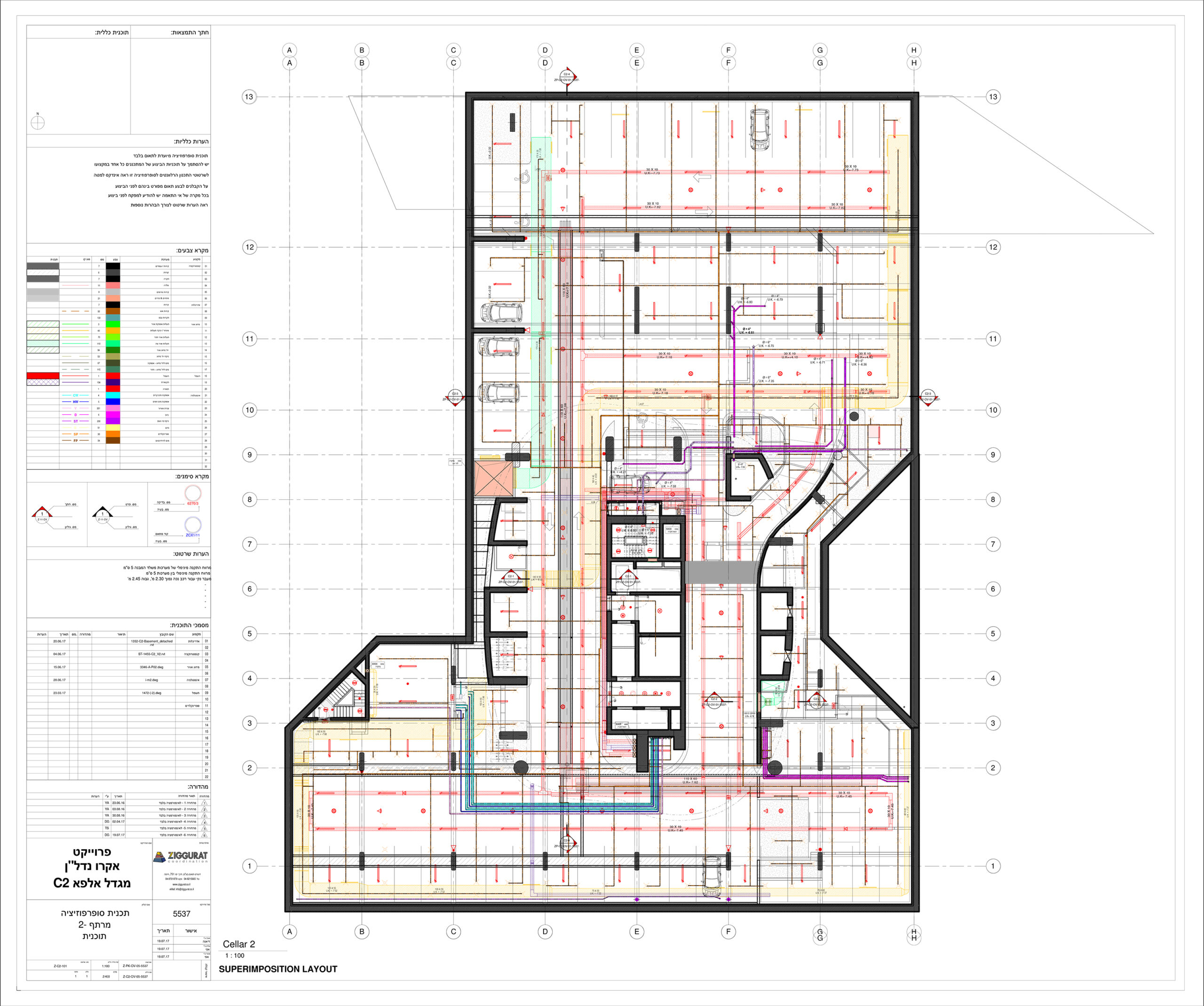

Combined coordination plan
The underground level plan combines engineering solutions in one representation.

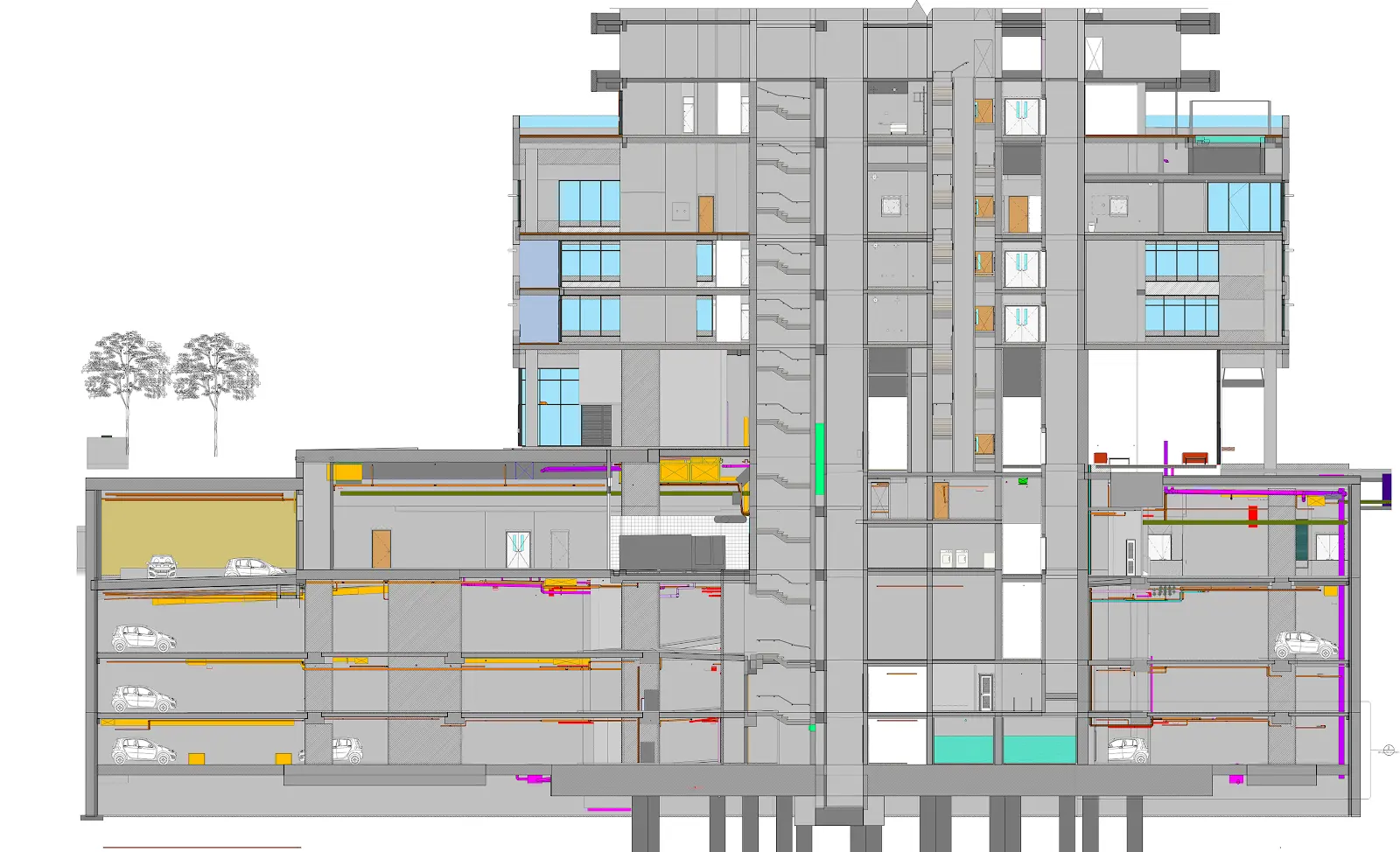

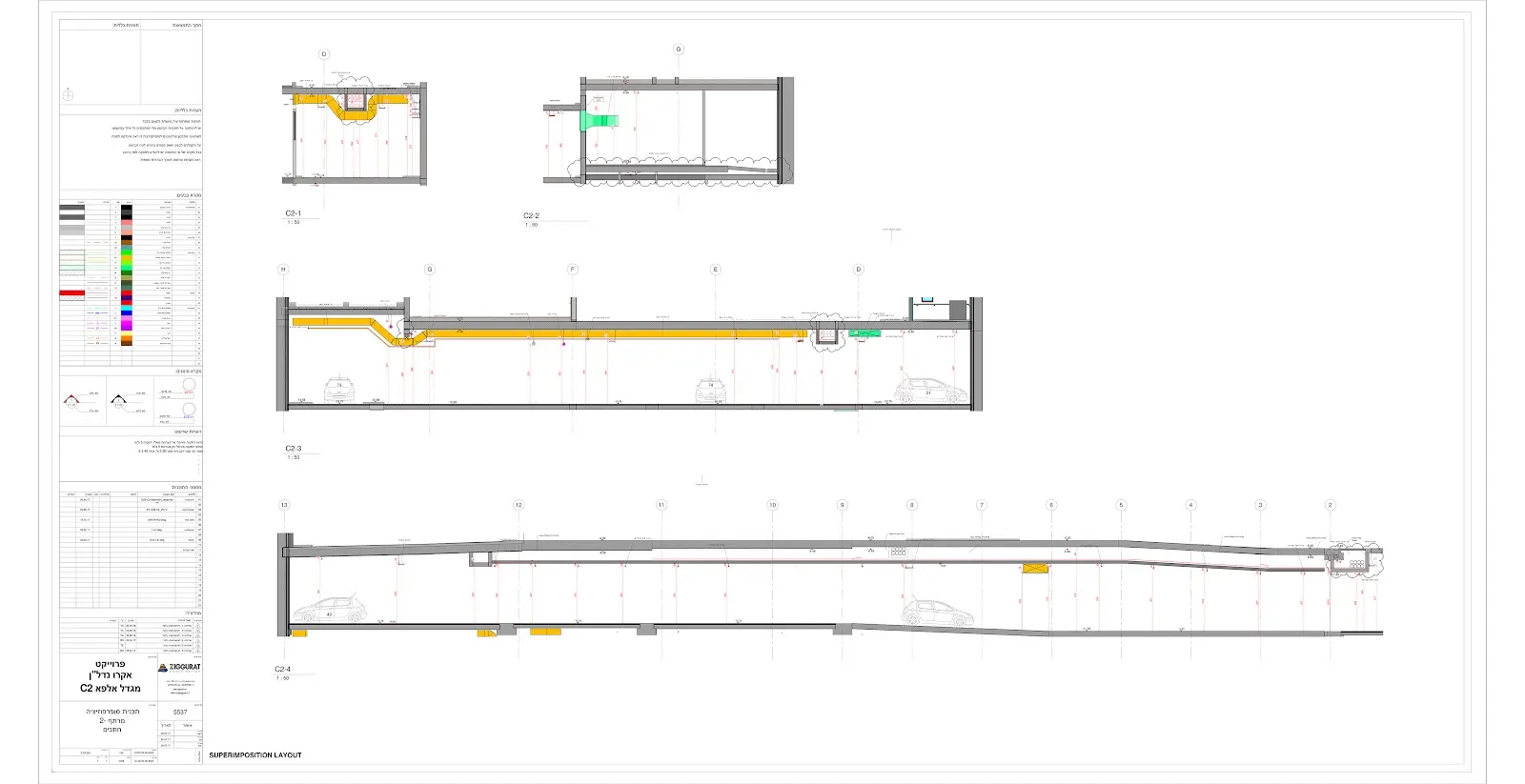

Coordination cuts
Sections clarify the height position of systems and transitions between levels.
APPROACH TO COORDINATION
From the general route — to the specific zone
The combination of model, plan and section helps to consider engineering solutions at different levels: from the general route of the network to its position in a specific area. For a multi-functional tower, this explains the relationship between vertical routes, floor wiring and architectural constraints.
-
General spatial picture The model helps to consider the relative position of systems within the building.
-
Inspection is planned The combined plan details the routes of networks and their connection to specific zones.
-
Height check Sections complement the plan and show vertical relationships.
RESULT OF THE PROJECT
Engineering solutions available for spatial viewing
The published Ziggurat kit combines model images, a combined plan and sections of the Alpha Tower. Together, they reveal the engineering component of the tower and provide a basis for a joint consideration of the mutual arrangement of systems.
- A single spatial representation of the engineering component Alpha Tower / C2.
- Complementary models, combined plan and coordinating cuts.
- A visual basis for a joint consideration of the mutual arrangement of systems.
